Mounting systems for displays and boards
Where and how do you want to use your display or board? This is decisive for the support system. We therefore offer floor-mounted or mobile systems, both of which are height-adjustable, as well as fixed wall mounts. You can find out which combinations are possible for which application here.
Our support systems

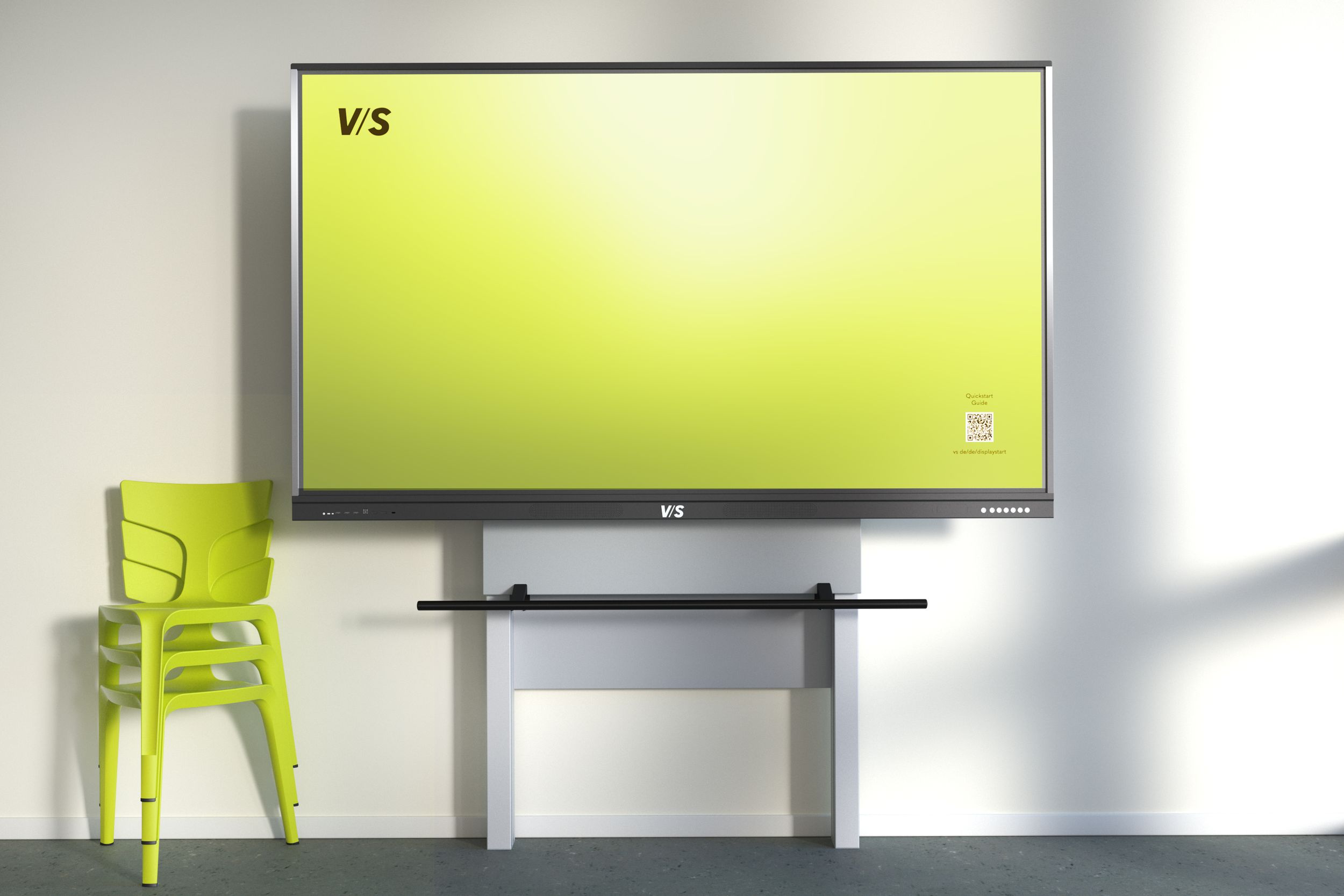

With gas pressure spring (GF)
Gas springs enable effortless, infinitely variable height adjustment—without electricity and with minimal maintenance. At the same time, they have a dampening effect and protect the mechanics, which extends the service life of the components. They are characterized by durability, user-friendliness, and particularly sustainable use.
With counterweight (GG)
Mechanical precision meets intuitive operation – the counterweight support system allows effortless height adjustment without electricity. Specially developed for the education sector, where teachers and students of all ages use the display safely and effortlessly every day. Reliable, economical and completely barrier-free.

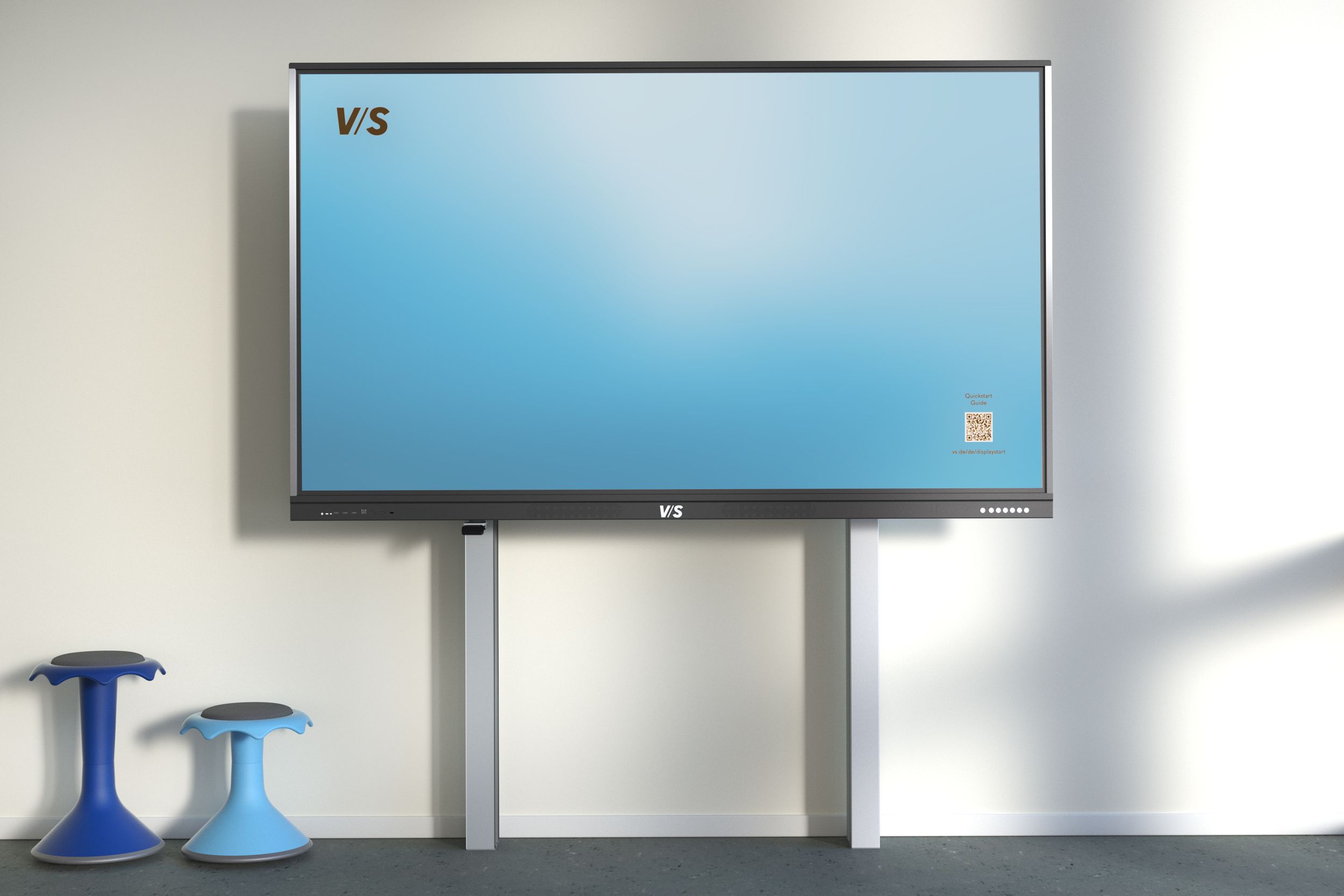

Electric motor (EL)
The ideal working height at the touch of a button: electric height adjustments allow displays to be adjusted very quickly and effortlessly. This also enables people with limited mobility to operate the system.

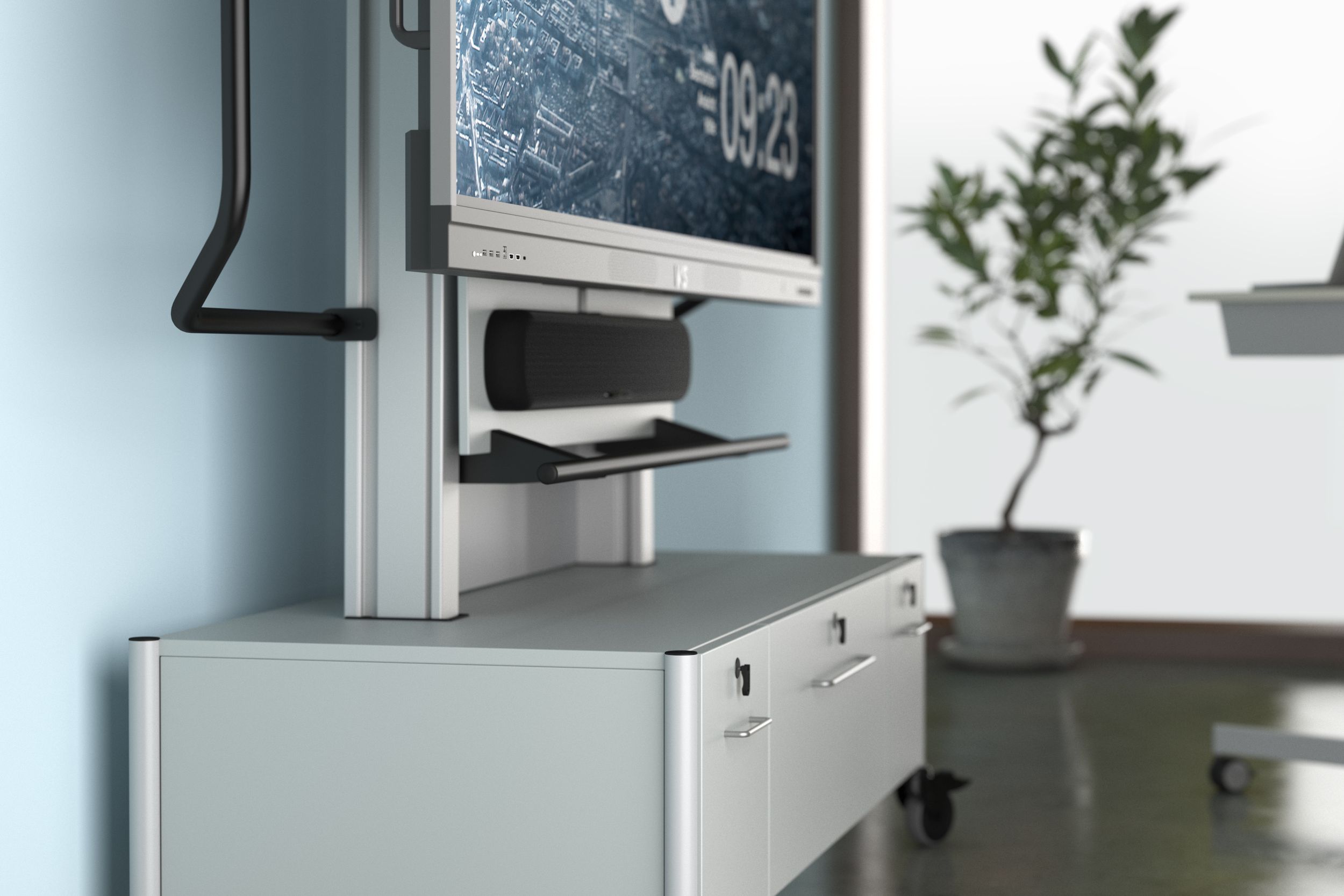

With gas pressure spring, mobile
The height-adjustable carrier systems offer maximum flexibility for everyday school life. Mobile, they can be used throughout the school building as needed. The height adjustment allows ergonomic adjustment for every user group.

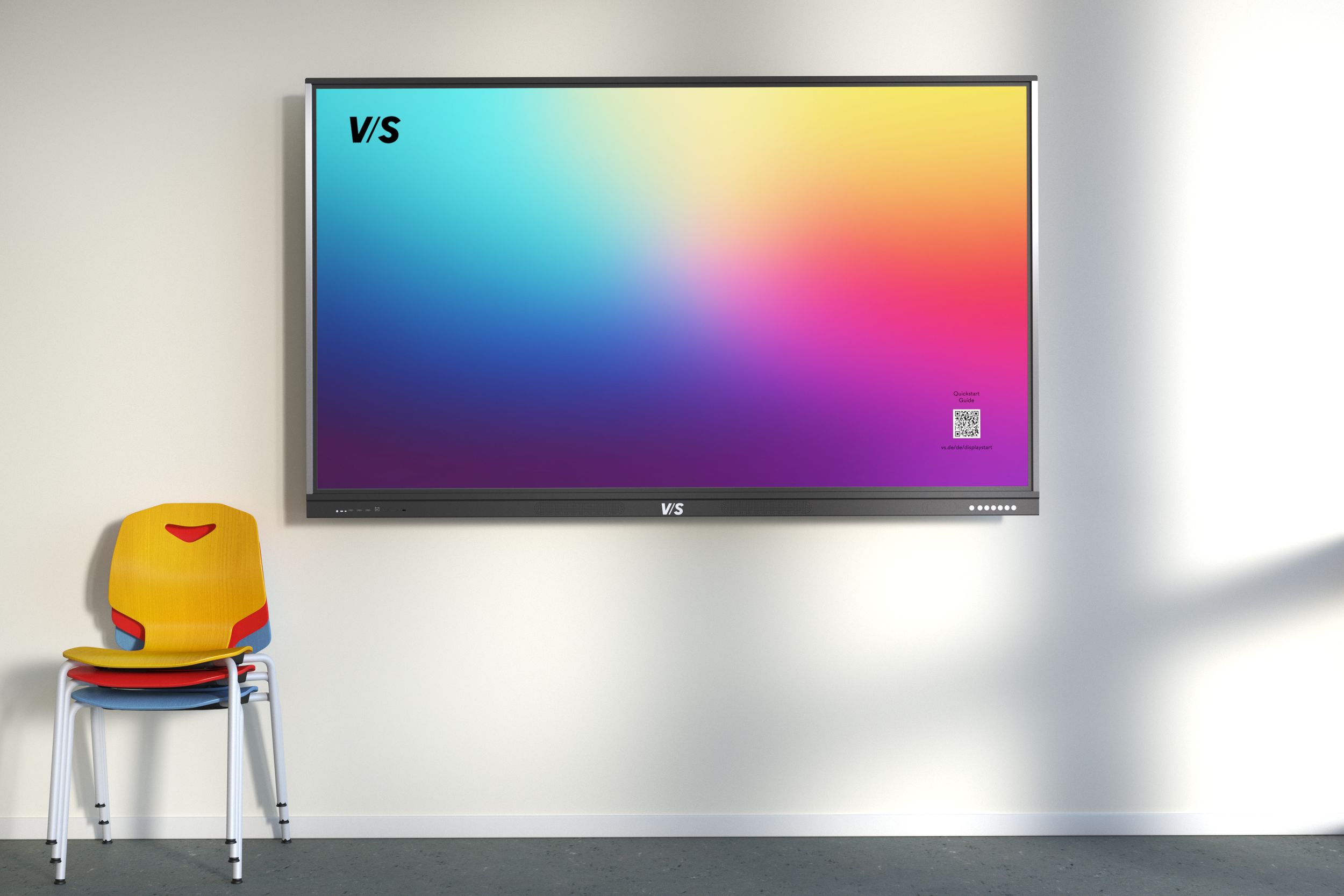

Wall-mounted
Maximum stability with minimum space requirements – the robust wall mounting frees up floor space and creates a tidy working environment. Seamless integration of accessories such as a sound system or mini PC creates a complete, durable media technology solution for demanding everyday use.

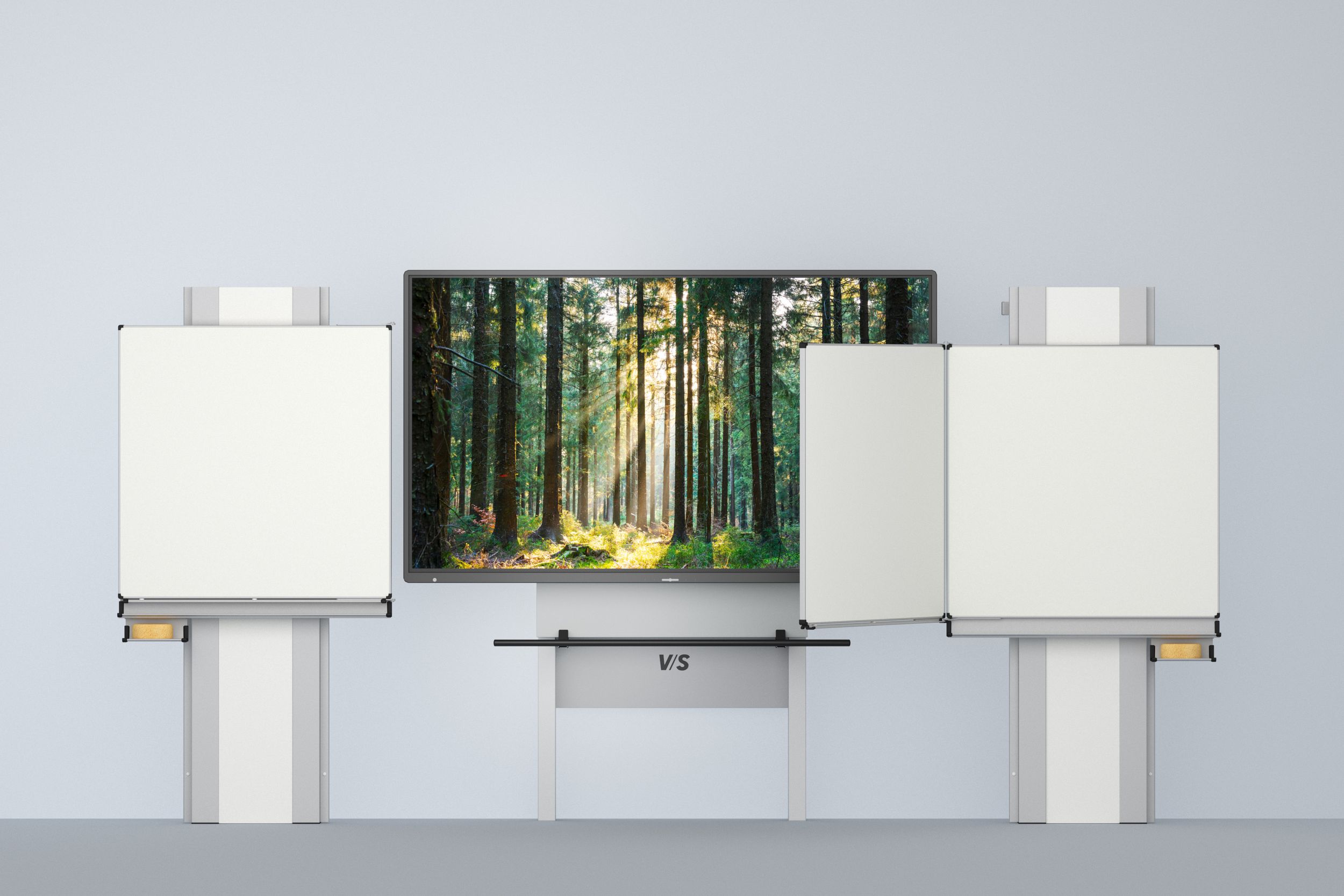

Counterweighted, hybrid
The hybrid whiteboard system combines traditional whiteboard surfaces with an interactive display. Thanks to integrated counterweight technology, the whiteboard panels can be moved easily and safely. The display can be mounted on a support system featuring a gas spring, counterweight or electric motor.
All height adjustments are GS-tested (DIN EN 14434) for 25,000 cycles, with CE certification and edge protection in accordance with GUV-SR2001 making them ideal for use in educational settings.
Comparison of our support systems
| Feature/advantage | Gas pressure spring | Counterweight system / Counterweight system hybrid | Electric motor | Mobile gas pressure spring | Wall bracket |
|---|---|---|---|---|---|
| System principle | 2 gas pressure springs balance the weight of the display | Counterweights with pulley principle | Electric motor raises and lowers the display | 2 gas pressure springs balance the weight of the display, mobile | for fixed location |
| Height adjustment | manual, infinitely variable, no power required | Manual, infinitely variable, no electricity required | at the touch of a button, infinitely variable | Manual, infinitely variable, no electricity required | Not height-adjustable |
| Ease of use | intuitive even for children, inclusive | intuitive even for children, inclusive | maximum ease of use | intuitive even for children, inclusive | Fixed height, no maintenance required |
| Power consumption | no | no | yes | no | no |
| Maintenance | very low | very low | low to medium (motor) | very low | Very low |
| Load capacity/display size | high | Very high (up to 200 kg) | high | high | Very high (up to 200 kg) |
| Safety in everyday life | mechanically reliable | Smooth, no risk of crushing, gentle end stops | integrated motor stops, collision protection | mechanically reliable | Secure hold thanks to solid frame |
| Investment/operating costs | inexpensive, no electricity costs | Medium, no electricity costs | higher (purchase, electricity costs) | Medium, no electricity costs | Very affordable, no follow-up costs |
| Blackboard wing | possible | possible | not possible | not possible | not possible |
| learn more | learn more | learn more | learn more | learn more |
Sort
Here you will find displays that are compatible with our carrier systems.
Our system is used in hundreds of educational institutions. Visit us in our showrooms, get comprehensive advice, or request a sample.
Talk to our team of experts. We are happy to assist you with planning and decision-making.
